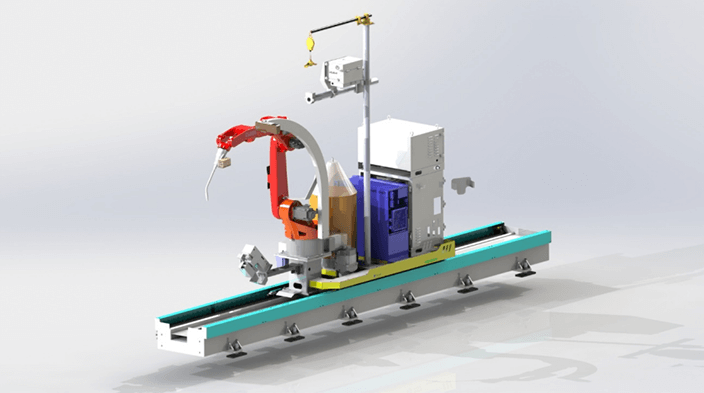

11.5-meter ground track vertical type double station intelligent welding workstation
11.5-meter ground track vertical type double station intelligent welding workstation, include Femocam/Femostar 3D visual sensor and Fesinweld intelligent welding system
Check SpecificationsSpecifications
| Model number | FSW2D1S7X-11MS |
| Power supply | 5PH AC380V/220V 50Hz ≥45KVA |
| Workstation motion axis QTY | 7-axis |
| Welding material type | Carbon steel, structural steel |
| Welding procedure | MIG/MAG |
| Welding gases | 80%Ar+20%CO2 100%CO |
| ≥3mm (optional multi-layer & multi-pass) | |
| Operating range | ≤10m×1.2m×0.5m (One robot with dual workstation welding.) |
| Adaptable Workpieces assembly error |
≤50mm |
| Industrial robots QTY | 1 |
| Industrial robots model | CLOOS QRH-405 |
| Welding accuracy | ±0.5mm |
| Welding power supply | CLOOS QINEO StarT 502 Premium W |
| Maximum peak welding current | 500A |
| Peak total power | 43.8 KW |
