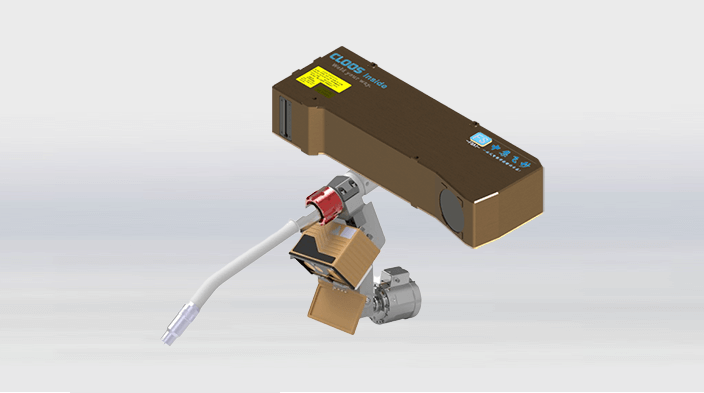

Femostar 3D visual sensor
Femoca adopts independent R&D of MEMS structured light technology, RGB camera with low power& high resolution ratio, can quickly scan workpieces to obtain their 3D point cloud, engaging the embedded visual point cloud analytic algorithm, can quickly identify over 95% of complex welding seams including lapping and abutting and plan complete welding procedure.
Check SpecificationsSpecifications
| Reference distance | 1600mm | ||
| Measuring range | Z-axis height | 1500mm | |
| X-axis width | near end | 1000mm | |
| Reference distance | 1600mm | ||
| far end | 1600mm | ||
| Illuminant | wavelength of illuminant | 450mm | |
| Laser grade | 3R | ||
| Laser Output Power | 50mW | ||
| Repeatability | Z-axis height | 100um | |
| X-axis width | 150um | ||
| linearity | Z-axis height | ±0.05% FS | |
| Contour Data Interval | X-axis width | 500um | |
| x-axis contour points | 3200 | ||
