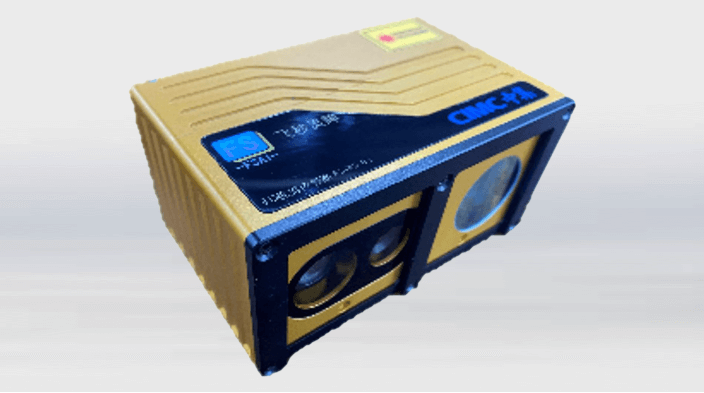

Femocam 3D visual sensor
Femoca adopts independent R&D of MEMS structured light technology, RGB camera with low power& high resolution ratio, can quickly scan workpieces to obtain their 3D point cloud, engaging the embedded visual point cloud analytic algorithm, can quickly identify over 95% of complex welding seams including lapping and abutting and plan complete welding procedure.
Check SpecificationsSpecifications
| Femocam FS-WD series welding 3D visual sensor | |||||
| model | FS-WD-12 | Operating Distance | 500-900mm | material | aluminum alloy,136H steel |
| Point cloud/ image resolution | 1280x1024 | Output point cloud formats | Pcd,ply,txt | Protection level | IP65 |
| RGB resolution | 1296x976 | Output Image Formats | BMP,PNG | operating temperature | -10°~65° |
| illuminant | multi-band mixed-spectrum laser | Overall power | 7W | Operating humidity | 20%~70% |
| repeated positioning accuracy | ±0.1mm | Exterior Dimension | 130x65x75mm | Protection kit | Motor flip cover |
| baseline length | 78mm | data interface | (DC)12v 10%；(POE)51V±10% | Trigger mode | support soft/hard triggering |
